This post is part of a series on retrowin32.

The Rust compiler compiles code in parallel. But the unit of caching is the crate — a concept larger than a module, which corresponds maybe to a library in the C world or package in the JS world. A typical program is a single crate. This means every time you run the compiler, it compiles all the code from scratch. To improve build performance, you can split a program into multiple crates, under the hope that with each compile you can reuse the crates you didn't modify.

retrowin32 was already arranged as a few crates along some obvious boundaries. The x86 emulator, the win32 implementation, the native and web targets were each separate. But the win32 implementation and the underlying system were necessarily pretty tangled, because (among other things) x86 code calls win32 functions which might need to call back into x86 code.

This meant any change to the win32 implementation recompiled a significant quantity of code. This post is about how I managed to split things up further, with one crate per Windows library. retrowin32 now has crates like builtin-gdi32 and builtin-ddraw that implement those pieces of Windows, and they can now compile and cache in parallel (mostly).

The big cycle

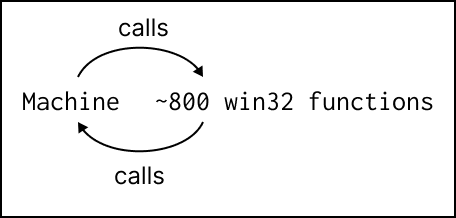

Going in, there was a god object Machine that held both the CPU emulator (e.g. the state of the registers) as well as the rest of the system (e.g. memory and kernel state). When the Machine emulated its way to a win32 function call (as described in the syscalls post), it passed itself to the target, which would allow it to poke at system state and potentially call back into further emulation.

For example, the Windows CreateWindow API creates a window and as part of that process it synchronously "sends" the WM_CREATE message, which concretely means within CreateWindow we invoke the window procedure and hand control back to the emulated code.

You cannot have cycles between crates, so this cycle meant that we must put Machine and all the win32 implementation in one single crate. The fix, like with most computer science problems, is adding a layer of abstraction.

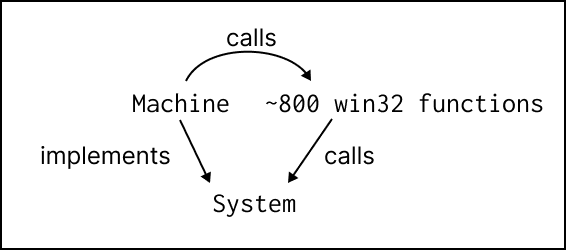

A new shared crate defines a System trait, which is the interface expressing "things from the underlying system that a win32 function implementation might need to call". This is then passed to win32 APIs and implemented by Machine, allowing us to compile win32 functions as separate crates, each depending only on the definition of System.

One interesting consequence of this layout is that the win32 implementation no longer directly depends on any emulator at all, as long as the System interface exposes some way to invoke user code. You could hypothetically imagine a retrowin32 that runs on native 32-bit x86, or alternatively one that lets you port a Windows program that you have source for to a non-x86 platform like winelib.

System state

I mentioned above that Machine also holds system state. For example, gdi32 implements the drawing API, which provides functions that vend handles to device contexts. The new gdi32 library enabled by the System interface can declare what state it needs, but we must store that state somewhere.

Further, there are interdependencies between these various Windows libraries. user32, which handles windows and messaging, needs to use code from gdi32 to implement drawing upon windows. But the winmm crate, which implements audio, is independent from those.

One obvious way — the way I imagine it might work in real Windows — is for this state to be held in per-library static globals. I came up with a different solution that is a little strange so I thought I would write it down and see if any reader has a name for it or a better way.

To restate the problem, there's a core Machine type that depends on all the libraries and which holds all the program state. But we want to be able to build each library independently, possibly with interdependencies between them, without them holding a dependency on Machine itself.

The answer is for the ouroborus-breaking System trait to expose a dynamically-typed "get my state by its type" function:

fn state(&self, id: &std::any::TypeId) -> &dyn std::any::Any;

Each library, e.g. gdi32, can register its state (a gdi32::State, perhaps) and fetch it when needed from the system. This way a library like user32 can call gdi32 and both of them can access their own internal state off of the shared state object.

It's maybe just a static with extra steps. I'm not sure yet if I like it.

Result

Most of the win32 API is now in separate crates. (The remaining piece is kernel32, which is the lowest-level piece and will need some more work to pull apart.)

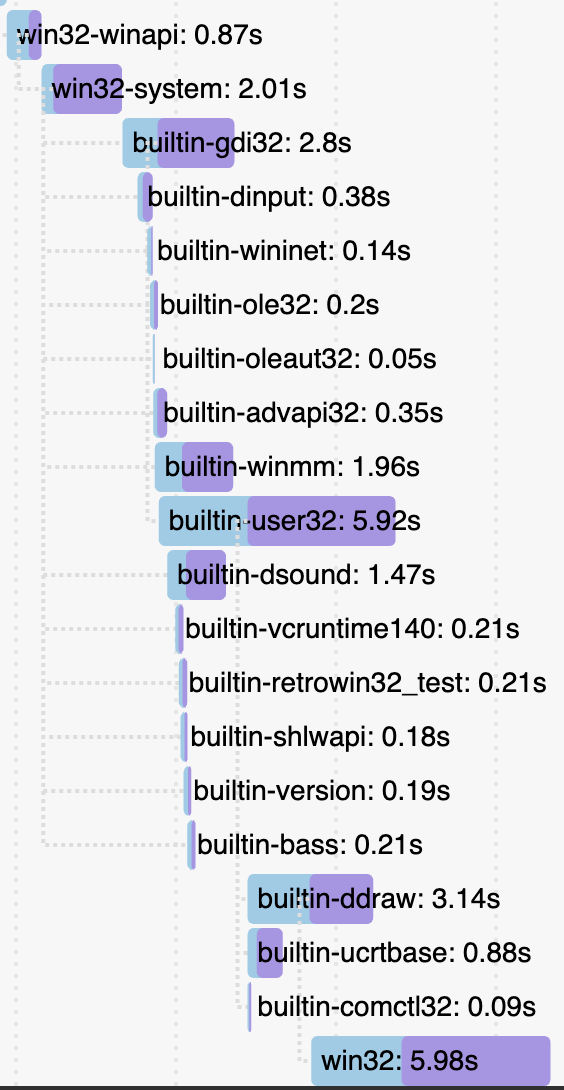

Here's a waterfall of the part of the build that involves these separate crates:

Per xkcd this probably won't save me time overall, but at least I don't have to wait as long when I'm repeatedly cycling.

At the bottom you see the final win32 crate that ties everything together. This one is still too slow (possibly due to kernel32), but it's better than before!
